Metering flexibility
across round
and square
connections.

The AML rotary valve is designed for metering and pneumatic conveying of powders and granules. With one round flange and one square flange, it can also serve as a transition piece between round and square connections in either direction. A range of materials, rotor configurations, and hygienic versions allows the AML to be adapted to different process requirements.

The AML rotary valve is designed for metering and pneumatic conveying of powders and granules. With one round flange and one square flange, it can also serve as a transition piece between round and square connections in either direction. A range of materials, rotor configurations, and hygienic versions allows the AML to be adapted to different process requirements.

Request a quote

Thank you Your quote request has been received!

Something went wrong.

One moment..

ENQUIRY TYPE arrow
PRODUCT INFORMATION arrow
ATEX arrow
ADDITIONAL Information arrow

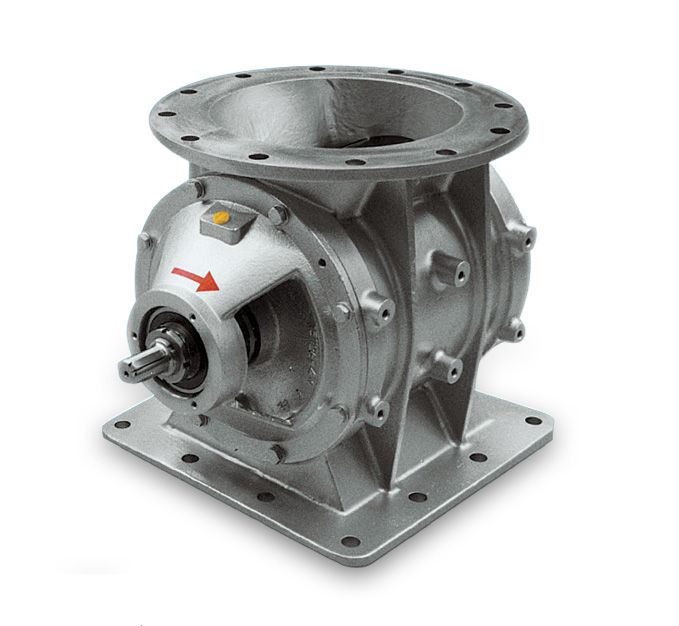

AML DROP-THROUGH ROTARY VALVE

METERING AND TRANSITION IN ONE BODY

The AML combines minimum air leakage and high filling efficiency with a body designed around one round and one square flange. It can therefore perform its rotary-valve function while providing a practical transition between different connection geometries.

Download product info

ROUND-TO-SQUARE CONNECTION FLEXIBILITY

With one round and one square flange, the AML can be installed as a metering valve while also providing a transition between round and square connections in either direction.

MINIMUM AIR LEAKAGE AND HIGH FILLING EFFICIENCY

The AML is designed for minimum air leakage and high filling efficiency, with a sheared-angle inlet forming part of the standard valve design.

CHOICE OF MATERIALS AND FINISHES

The valve is available in stainless steel or cast iron.

Explore all 05 benefits

AML DROP-THROUGH ROTARY VALVE

AML AT A GLANCE

ROUND-TO-SQUARE CONNECTION FLEXIBILITY

With one round and one square flange, the AML can be installed as a metering valve while also providing a transition between round and square connections in either direction.

MINIMUM AIR LEAKAGE AND HIGH FILLING EFFICIENCY

The AML is designed for minimum air leakage and high filling efficiency, with a sheared-angle inlet forming part of the standard valve design.

CHOICE OF MATERIALS AND FINISHES

The valve is available in stainless steel or cast iron. Cast iron versions can also be supplied nickel-plated, chrome-plated, or tungsten-coated, giving users a broader choice of executions for different applications.

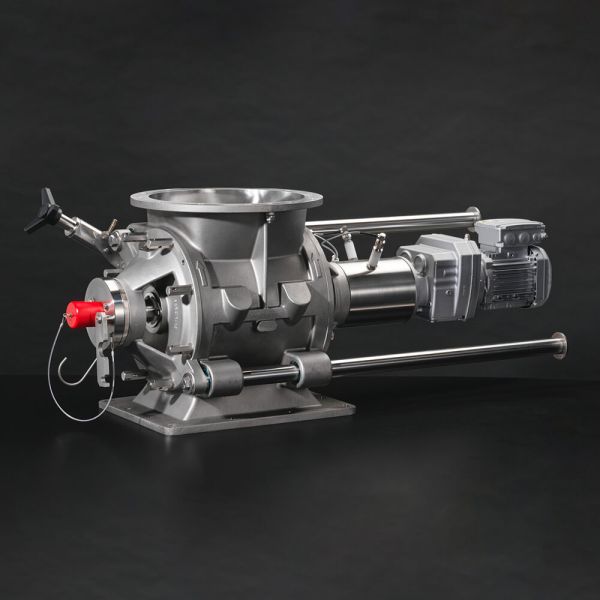

EASY-DETACHABLE HYGIENIC VERSIONS

The range includes USDA Dairy-accepted models and versions conforming to EC 1935/2004 for sanitary applications. Hygienic stainless steel versions are designed for easy detachment, facilitating inspection and cleaning.

SPECIAL CONFIGURATIONS FOR DEMANDING CONDITIONS

Standard models handle product temperatures up to +150°C and a maximum pressure differential of 2 bar. Customised configurations are available for temperatures from -200°C to +600°C and pressure-shock resistance up to 10 barg.

Download product info

ROTARY VALVE

AML

Overview

The AML uses a standard nine-blade rotor, with alternative rotor configurations available for different products and capacities. End covers have outboard bearings that are lubricated and sealed for life, while shaft seals can be specified with gland packing or lip seals and an optional air purge. Large vent holes are drilled to order.

Seven sizes are available, ranging from 100 to 400, with capacities from 0.8 to 58 litres per revolution at 100% fill. Chain-drive and direct-drive configurations are also available.

Certifications

  • ATEX
  • EHEDG
  • EC
  • USDA
  • FDA
  • NFPA

Key Features

  • Rotary valve for metering and pneumatic conveying of powders and granules
  • One round and one square flange in the same body
  • Can be used as a transition between round and square connections
  • Minimum air leakage and high filling efficiency
  • Standard nine-blade rotor with alternative configurations available
  • Stainless steel or cast iron construction, with coated cast iron options
  • Seven available sizes from 100 to 400
  • Standard product temperature up to +150°C and maximum pressure differential of 2 bar

  • 2

    flange types

    Round and square in one body

  • 9

    blades

    Standard rotor configuration

  • 7

    sizes

    Available from 100 to 400

  • 58

    L/rev

    Maximum listed capacity at 100% filling
