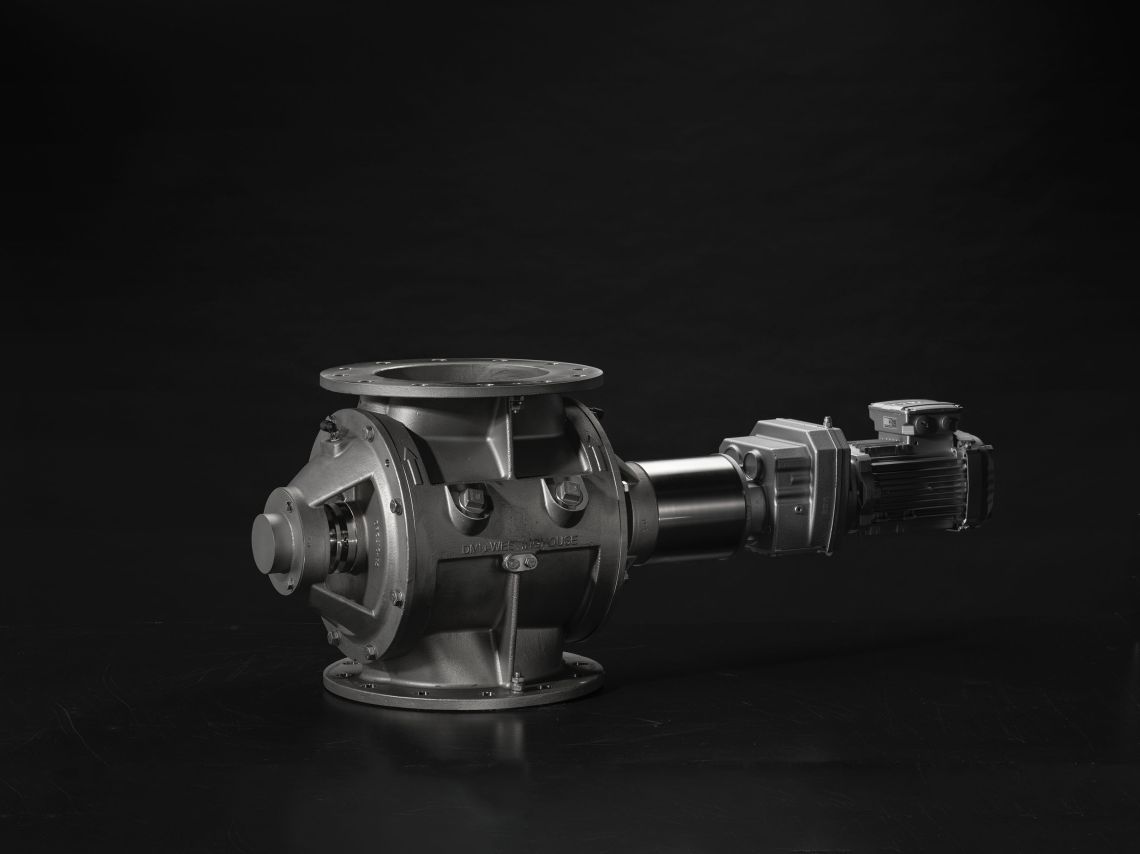

AL/AXL DROP-THROUGH ROTARY VALVE
The AL/AXL range combines minimum air leakage and high filling efficiency with a flexible, modular construction. Different rotor, sealing, drive, material, and venting options allow the valve to be configured around a wide range of powders, granules, and process conditions.
The AL/AXL is designed for minimum air leakage and high filling efficiency.
Standard components allow the valve to be configured for different products and processes.
The range includes easy-detachable versions for inspection and cleaning.
AL/AXL DROP-THROUGH ROTARY VALVE
The AL/AXL is designed for minimum air leakage and high filling efficiency. A sheared-angle inlet forms part of the established valve design.
Standard components allow the valve to be configured for different products and processes. A range of rotor configurations is available, including fixed or adjustable blades, reduced-capacity versions, and other specialist designs.
The range includes easy-detachable versions for inspection and cleaning. MZC executions use support rails to assist in removing the end cover and rotor without damaging the housing.
The AXL has a larger inlet in relation to the rotor volume. It is designed for applications that require a larger inlet or involve products with poor flowability.
The range includes USDA Dairy-accepted models. EC 1935/2004 conformity and EHEDG Type ED Class II certification are also available. Standard AL and AXL models handle product temperatures up to +150°C, while special configurations are available for more extreme temperature requirements.
ROTARY VALVE
The AL and AXL rotary valves are used for metering and pneumatic conveying of powder and granular products. The standard rotor has nine blades, with alternative rotor configurations available for different products and capacities. Shaft seals can be specified with gland packing or lip seals, with an optional air purge, and direct and chain-drive options are available.
The AL range is available in ten sizes, from 100 to 500, with capacities ranging from 0.8 to 230 litres per revolution at 100% fill. AXL models are available in four sizes from 200 to 350. Dairy and MZC executions provide additional options where hygiene, cleaning access, or easy rotor removal are required.
| AL Rotary Valve | 100 | 150 | 175 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
|---|---|---|---|---|---|---|---|---|---|---|
| AXL Rotary Valve | 200 | 250 | 300 | 350 | ||||||
| LTR/REV AT 100% FILLING | 0.8 | 2.5 | 5.5 | 10.5 | 19 | 34 | 58 | 91 | 135 | 230 |
Technical modifications are possible, dimensions in mm.
*More detailed information is found in our product documentation
9
blades
Standard rotor configuration
10
AL sizes
Available from 100 to 500
4
AXL sizes
Available from 200 to 350
230
L/rev
Maximum listed capacity at 100% filling
